Fiber Cement Corrugated Roofing Sheet
Corrugated Roofing Sheets At SADIKBOARD, quality and strength take precedence above all else.
Our brand prides itself on a commitment to excellence, driven by superior technology and the expert craftsmanship that defines our products. We understand the importance of delivering roofing solutions that not only meet but exceed expectations.
SADIKBOARD Fiber Cement Corrugated Roofing Sheets epitomize durability, flexibility, and affordability. Our products are the preferred choice across industries, including factories, warehouses, and sectors such as food processing, pharmaceuticals, textiles, engineering, chemicals, automobiles, dairy farms, and agriculture.
Our fully automated Fiber Cement plant integrates cutting-edge technology, ensuring consistency in physical properties and strength that surpass ISI standards. Each SADIKBOARD sheet is engineered with precision, guaranteeing resilience against weather elements, corrosion, and fire hazards.
From installation ease to environmental friendliness, EMIRBOARD sets new standards in roofing excellence. Our commitment to innovation and sustainability drives us to continuously enhance our products, offering solutions that endure the test of time.
Experience the difference with SADIKBOARD, where quality and reliability converge to redefine roofing excellence.
SPECIFICATIONS | NOMINAL VALUES mm | TOLERANCE mm | REFERENCE STANDARD |
Length | From 1525 to 2550 | ± 10 | EN 494 |
Width | 1097 | + 10-5 | EN 494 |
Cover Width | 1050 | - | - |
Thickness | 5.7 - 6 | ± 0.6 | EN 494 |
Corrugation Pitch | 177 | ± 2 | EN 494 |
Corrugation Height | 51 | ± 3 | EN 494 |
Out Of Squareness | - | Max 6 | EN 494 |
Specifications
| Value
|

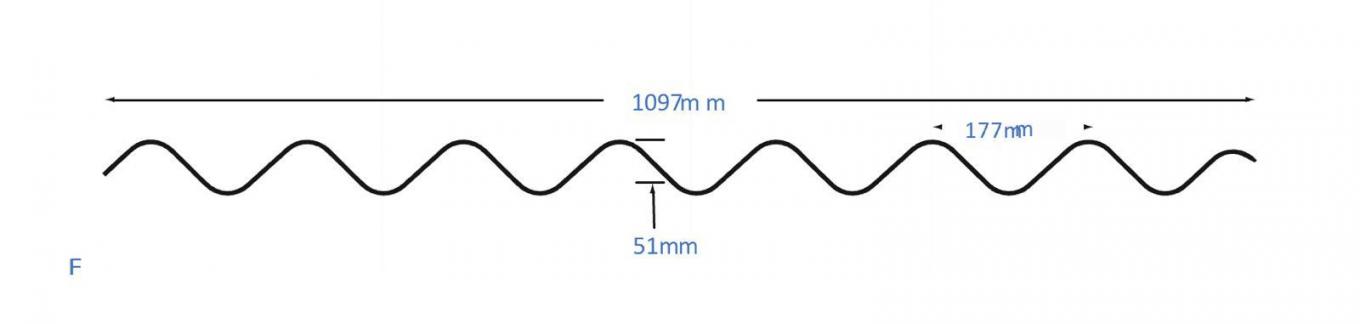

Width of the sheet before the wave | 131.5 mm |
Width of the sheet after the wave | 1097 mm |
Wave step | 177 mm |
Wave height | 51 mm |
Wave number | 6.5 |
Nominal thickness | 5.7 – 6.00 mm |
Moment of inertia of the section (average) in one meter width | 255.5 Cm |
Half wave area | 56.8 Cm |
Coverage width | 1050 mm |
Maximum distance of the beams in the roof covering | 1150 mm |
Maximum distance of the beams in the wall covering | 1500 mm |
Special Weight | 1.5 g/cm |
Minimum slope in the installation of the roof covering | 10 d |
Class according to national standard 12276 and European standard EN 494 | 1 and 2 |
Minimum breaking load at the support distance of 1100 mm of the wet system according to the national standard 12276 and the European standard EN 494 | 3500 and 4250 N /m |
Other features | Waterproof plate production using nano technology, Color plate production |
Size (MM) | Thickness (MM)
| Weight (KGS)
| Pallet (PCS)
| Loading Quantity Per 20GP (PCS)
|
1200x2400 | 6 | 24
| 100
| 900
|
1200x2400
| 8
| 32
| 70
| 675
|
1200x2400
| 10
| 40
| 60
| 540
|
1200x2400
| 12
| 48
| 50
| 450
|
