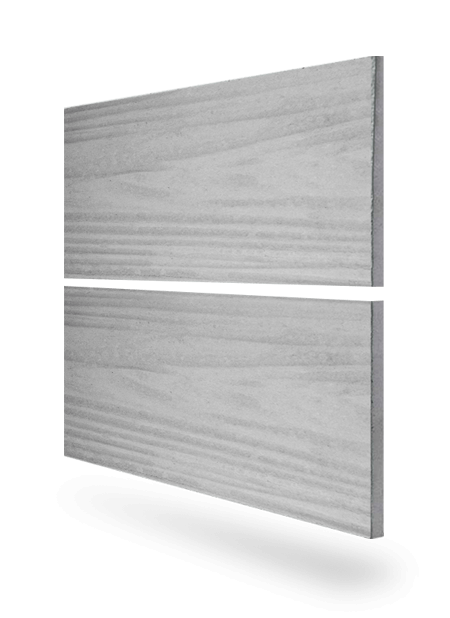

Natural Wood Textured Fiber Cement Construction.
WOOD DESIGN SADIKBOARD embodies the perfect fusion of cement and fiber, meticulously designed to replicate the authentic texture of wood while ensuring durability and lasting elegance.
Tailored for both interior and exterior applications, WOOD DESIGN SADIKBOARD offers:
Key Features:
Natural wood texture for timeless elegance. Versatile architectural solutions suitable for a myriad of projects.
Ideal for mechanical installation in ventilated facade systems. Enhances interior spaces with its organic appeal. Lightweight and resilient, ideal for renovation endeavors. Customizable with painting, coating, or wallpapers. Superior impact resistance compared to conventional materials. Functions adeptly as a reliable backer board for cladding materials. Applicable for sheathing floors, roofs, and walls.
Excellent performance in wet spaces as a backer board behind tiles. Simple installation, modification, cutting, and drilling.
Lightweight design facilitates easy handling and transportation. Provides robust protection against various weather conditions. Offers commendable heat and acoustic insulation properties. Resistant to seasonal changes, sunlight, moisture, and water. Environmentally conscious, asbestos-free, and devoid of odors. Impervious to insects, non-putrescible, and mold-resistant.
Applications:
-Interior:
Internal walls
Flooring, including raised and mezzanine floors
Indoor ceilings
Wet spaces
Elevator shaft walls
Firewalls
-Exterior:

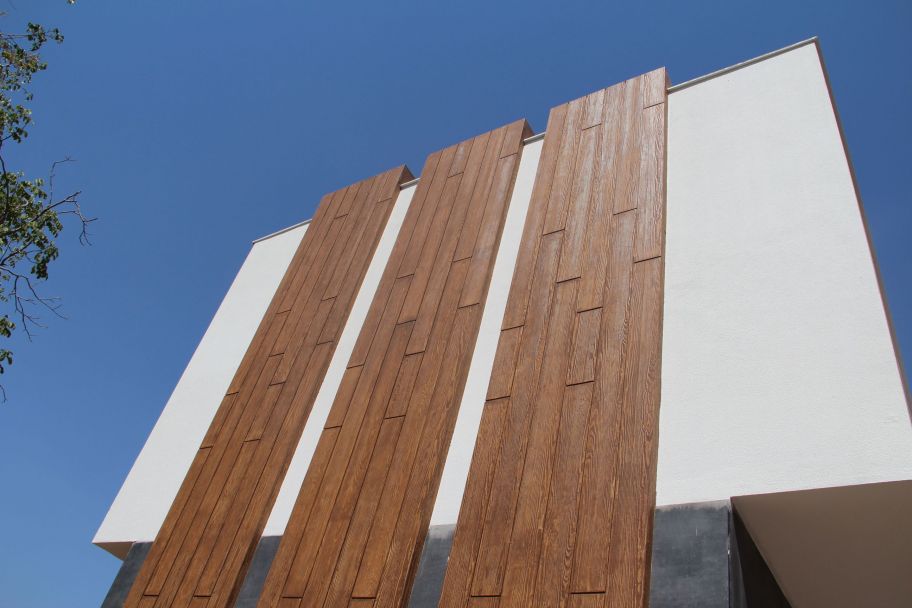

External walls and facades
Roofs
Outdoor ceilings
Soffit and fascia
Fences and boundary walls
Balconies and parapets
Noise barriers
Embrace the sophistication and reliability of WOOD DESIGN SADIKBOARD for your construction projects.
Thickness | 6 - 18mm / Textured boards 8 - 12mm |
Density
| 1425 kg/m3 |
Modulus of Elasticity (Moist Condition) | 14.3 MPa |
Length / Width Tolerance | 0.9 millimeters / 0.8 millimeters. |
Thickness Tolerance (e: board thickness) | ± 0.1 mm / m |
Right Angle Deviation
| ± 0.2mm/m |
Edge Smoothness | ± %0.1 a:/a: side length |
Surface View | Flat or textured |
PH Valu | 7-8 |
Acoustic Insulation | STC = 30 dB (6 mm single board)STC = 50 - 60 dB (10 mm composite wall) |
Modulus of Elasticity (Moist Condition)
| 14.3 MPa |
Porosity | %0.3 |
Bending Strength Ratio after:Wet-Dry CycleFreezing-Thawing CycleImmersion in Warm Water
| 0.870.920.95 |
Durability Properties:Freeze / Thaw ResistanceWarm Water ResistanceHeat / Rain ResistanceSoak / Dry Resistance
| Resistant to freezing according to TS EN 12467PassPassPassPass
|
Fire Resistance Properties:IgnitibilityFire Propagation IndexSurface Spread of FlameReaction to Fire ClassificationCombustibility
| PassI = 0.4Class 1A1Non-Combustible
|
Asbestos Content | Does not contain asbestos |
Other Hazardous Material Emission
| Has no hazardous material or gas emission |
Size (MM) | Thickness (MM)
| Weight (KGS)
| Pallet (PCS)
| Loading Quantity Per 20GP (PCS)
|
1200x2400 | 6 | 24
| 100
| 900
|
1200x2400
| 8
| 32
| 70
| 675
|
1200x2400
| 10
| 40
| 60
| 540
|
1200x2400
| 12
| 48
| 50
| 450
|
